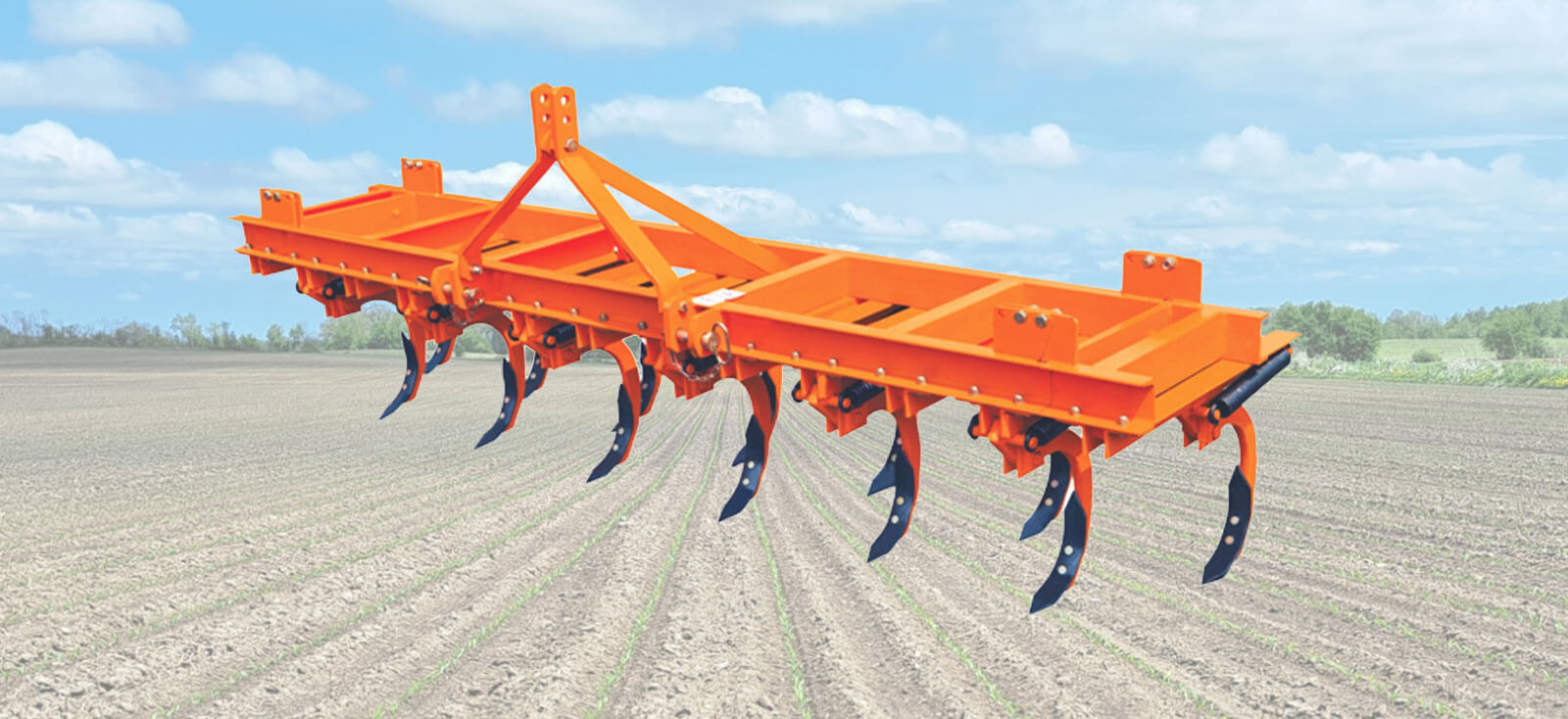

EXTRA HEAVY DUTY SPRING LOADED TILLERS

Features :

1. Its strong channel frame has been designed for the toughest farm operations. Its robust design ensures that there is absolutely no break-down even in stony conditions.
2. Its special steel springs ensure that the tynes do not lose their place even when they encounter any obstruction below the land.
3. The tynes used in this tiller have been fabricated at precise angles which ensure that the tiller penetrates the land effectively with minimum load on the tractor. The material used in fabricating these tynes is strong enough to withstand hard & stony conditions.
4. The scientifically designed shovels used in this tiller have a unique composition which ensures high durability & efficient working, resulting in low-maintenance costs for the farmer.

TECHNICAL SPECIFICATION

DESCRIPTION / MODELS NEHSLT9 NEHSLT11 NEHSLT13 NEHSLT15
Frame (mm) 75x40 100x50
Spring (mm) WD 10 & OD 50, 28.5 Coils
Tyne (mm) 50x25 (Forged)
Pairs (mm) 65x65x6 (MS Angle)
Frame Bolts M12x35 High Tensile
Tyne Bolts M12x35 High Tensile, M18 x 65 High Tensile
Linnkage 3 Points (mm) 50x16 (Front) / 50x16 (Rear) 65x16 (Front) / 50x16 (Rear)
Shovel (mm) 8 (EN-42)
Length (mm) 2000 2457 2914 3371
Width (mm) 850
Height (mm) 585
Mounting Category CAT II
Weight (Kgs. Approx) 245 285 405 480
Tractor Power (H.P) 40 - 50 50 - 55 60 - 65 70 - 75

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
