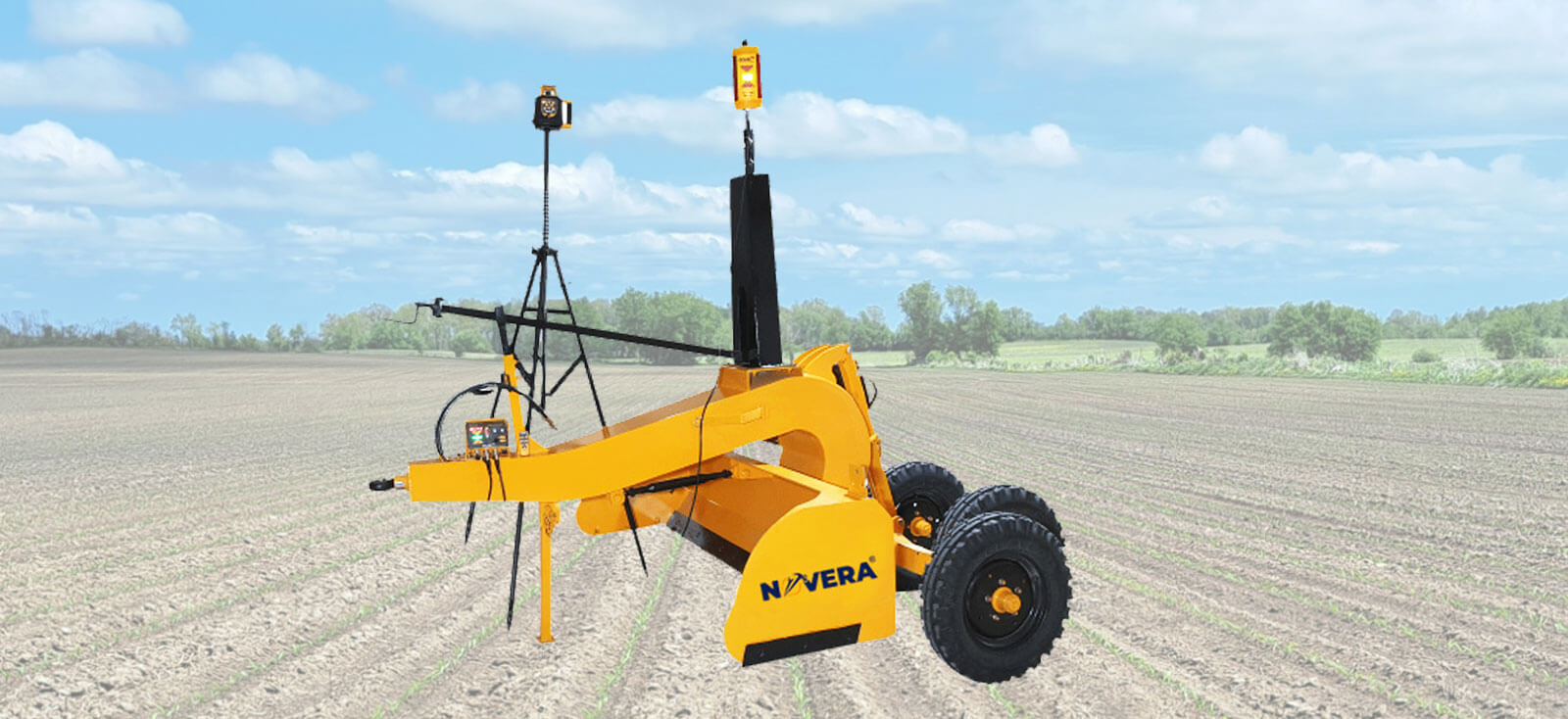

Laser Land Leveller

Laser leveling is the process of smoothening the land surface ± 2 cm from its average elevation by using laser equipped drag buckets to achieve precision in land leveling. Precision land leveling involves altering the fields in such a way as to create a constant slope of 0 to 0.2%.

TECHNICAL SPECIFICATION

Description / Model NELL-06 NELL-07 NELL-08
Working Width (MM) 1825 2130 2435
Bucket Height (MM) 585
Bucking Sheet (MM) 8 8 10
Scrapper Blade (MM) 100x100 (Sq. Tubular) & 100x50 (Rec. Tubular)
Hitch Assembly Made from Bended Plate
Blade Special Steel 125x12
Type 6-00-16 With Heavy Duty Hubs
Tractor Power Required (H.P) 45 - 55 55 - 65 70 - 85

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
