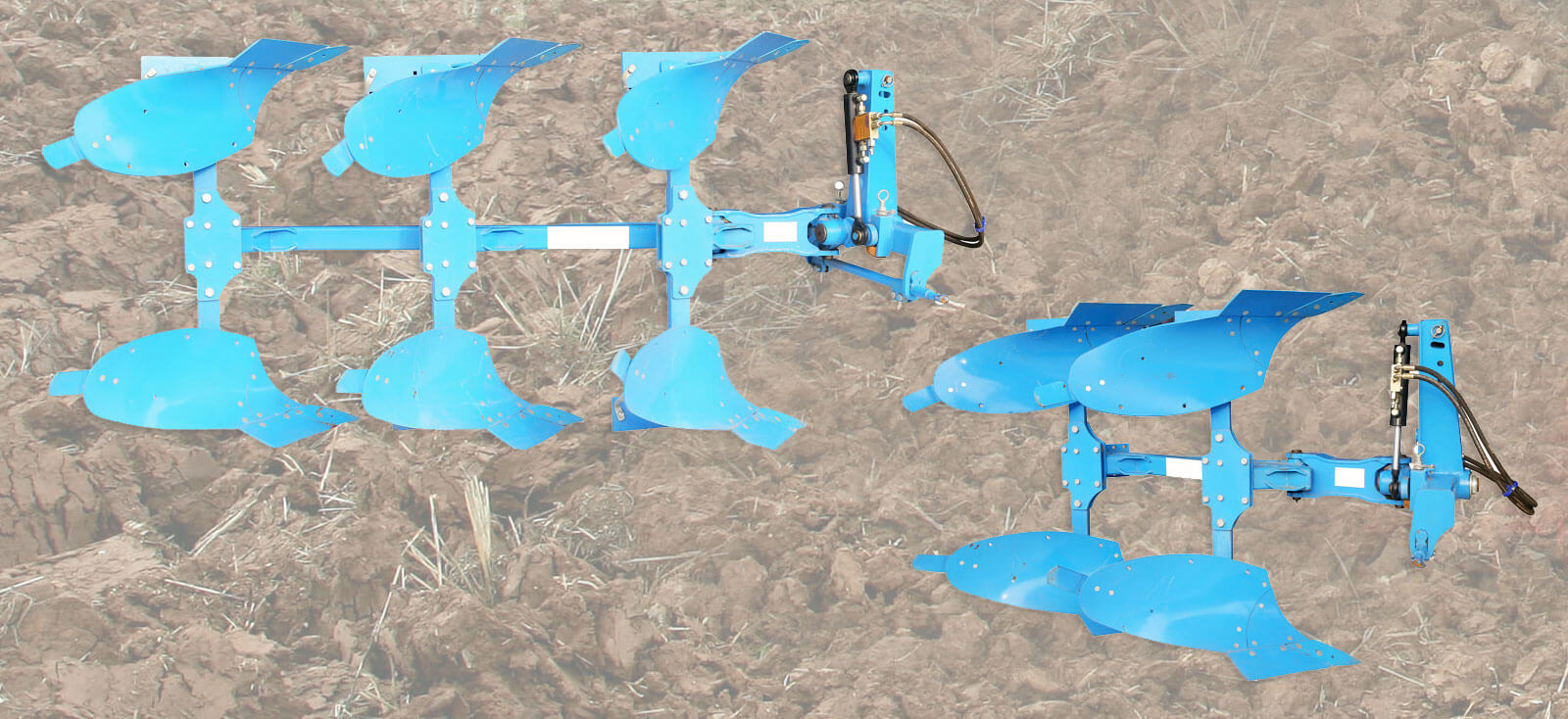

Reversible MB Plough

Features :

1. Its heavy duty frame has been designed in such a way that it retains its structural integrity even during the toughest ploughing operations. Its weight is adequate for attaining the required ploughing depths. The frame has a unique rotating mechanism which allows the farmer to rotate the furrows and finish the ploughing operation quickly.
2. Its high ground clearance allows the plough to deal with trashy conditions like crop residue, weeds etc.
3. The steel blades used in the plough have a unique chemical composition which ensures high longevity & efficient working even after toughest ploughing operations.
4. The bar points can be adjusted till their last possible length, making the plough more economical to maintain.
5. The rotating mechanism comprises of minimum parts thereby making it economical for the farmer to maintain it.

TECHNICAL SPECIFICATION

Description NERMP-02 NERMP-03
NUMBER OF FURROWS 2 3
FRAME (in mm) Heavy Duty Frame (97 x 97 x 9 T (Box))
TYNE (in mm) Profile Cut Single Piece 36 MM
MOULD BOARD THICKNESS (in mm) 8
PLOUGH SHARE (in mm) 10
BAR POINT 100 x 15 (forged)
TURNOVER MECHANISM Hydraulic / Manual (optional)
WIDTH OF CUT (in mm) 700 1050
DEPTH OF CUT (Max. in mm) 355
SAFETY Shear Bolt
WEIGHT (in Kg. approx) 450 620
TRACTOR POWER (in HP) 50 - 70 75 - 100
