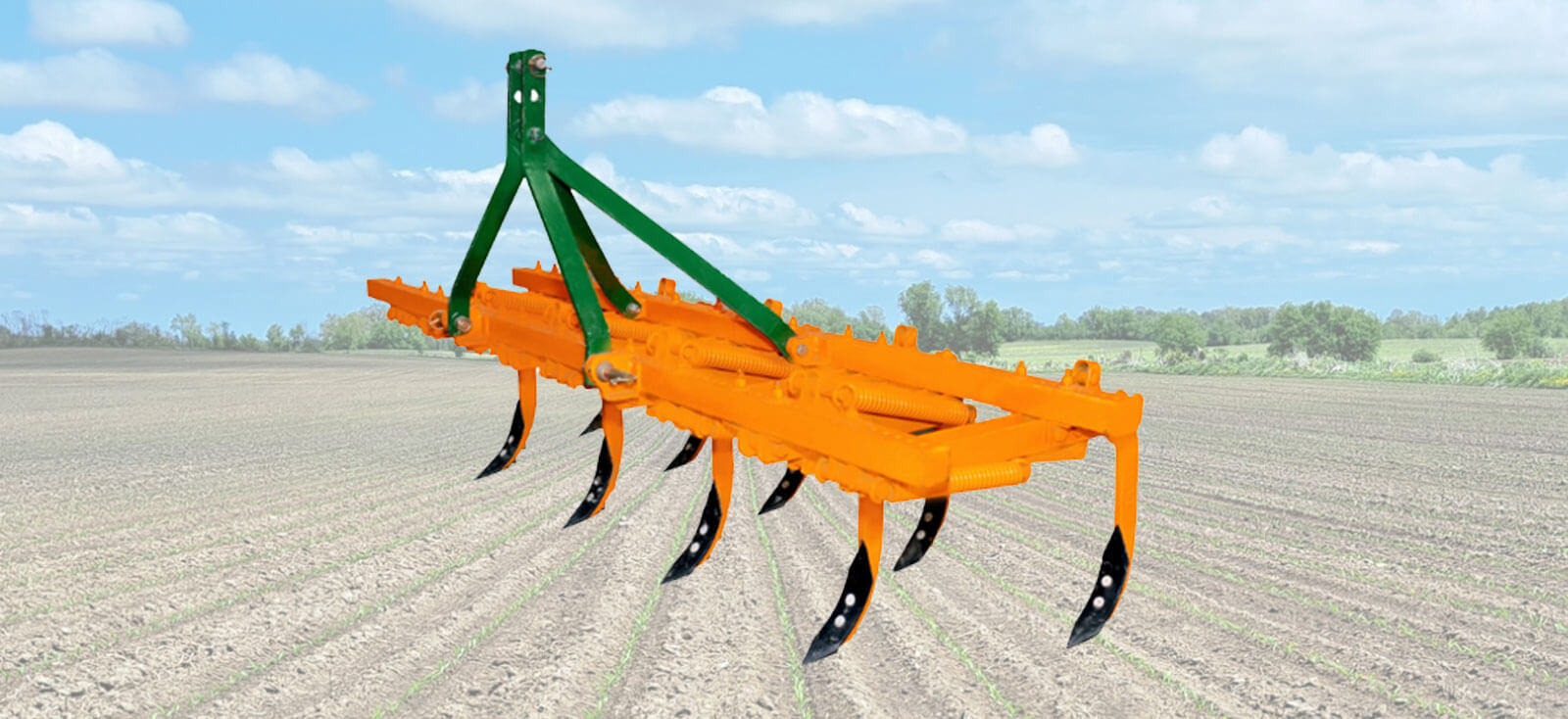

Pin To Pin Spring Type Cultivator
Pin To Pin Spring Type Cultivator
TECHNICAL SPECIFICATION
| DESCRIPTION / MODELS | NEPPT 5 | NEPPT 7 | NEPPT 9 | NERTC 11 | NEPPT 13 |
| Frame (mm) | MS Angle 65 x 10 | ||||
| Spring (mm) | 9.5 mm WD, 50 mm OD, 26.5 coils | ||||
| Tyne (mm) | 19 mm (Forged) | ||||
| Pairs (mm) | MS Flate 50 x16 (Rear), 65 x 12 (Front) | ||||
| Shovel (mm) | 8 mm | ||||
| Length (mm) | 1234 | 1728 | 2185 | 2642 | 3100 |
| Width of cut (mm) | 980 | 1372 | 1829 | 2286 | 2743 |
| Height (mm) | 533 | ||||
| Mounting Category | CAT II | ||||
| Weight (Kgs. Approx) | 135 | 180 | 220 | 260 | 300 |
| Tractor Power (H.P) | 25 - 30 | 30 - 35 | 40 - 45 | 50 - 55 | 60 - 65 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.
