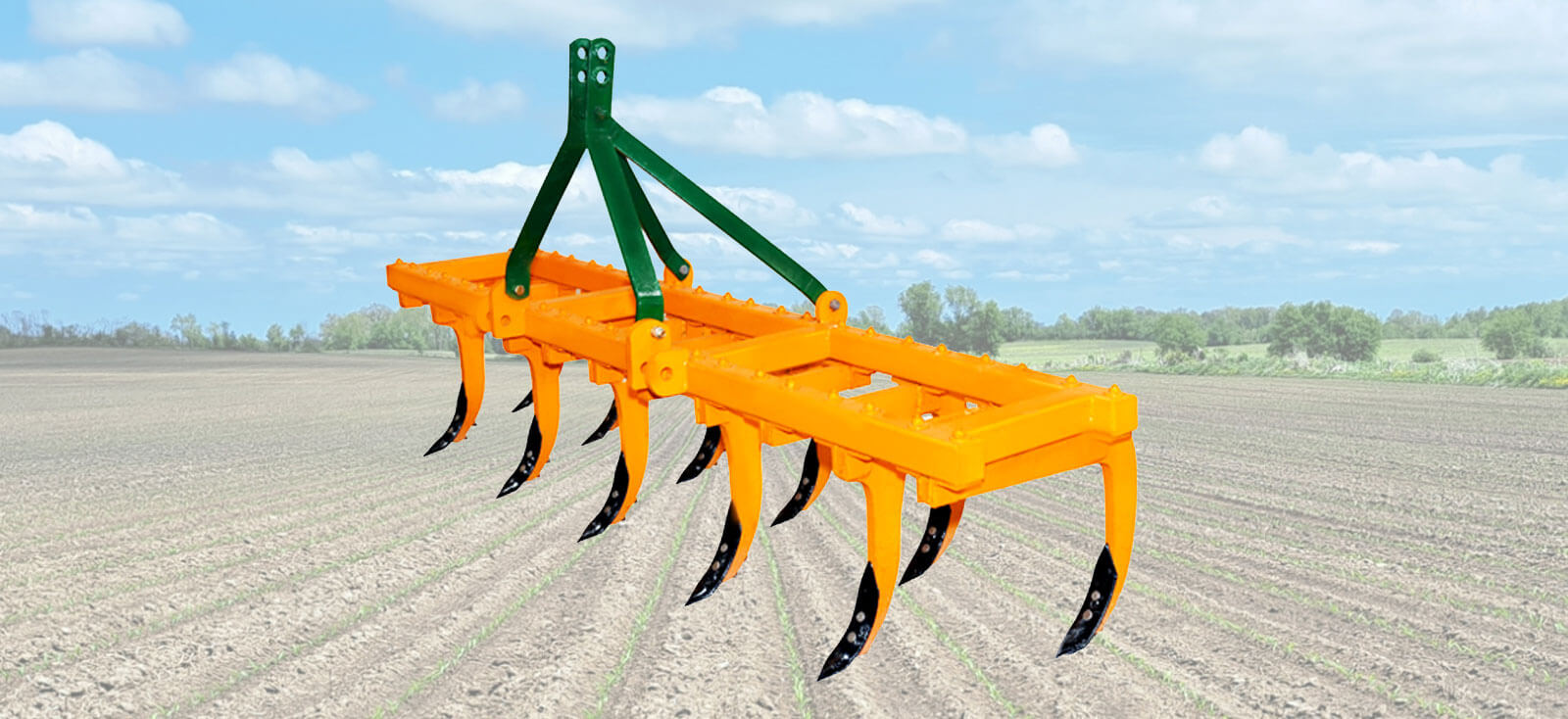

Heavy Duty Rigid Type Cultivator

Features :

1. Its strong steel pipe frame provide sufficient weight to the tiller which allows it to penetrate the land easily, properly and removes the need for any additional weights being piled-on the tiller.
2. The tiller penetrates deeply in the soil without the risk on any crop remains/ farm residue getting stuck on it, thereby allowing the farmer to attain proper working depth during tillage operation.
3. The tynes used in this tiller have been cut at precise angles which ensure that the tiller penetrates the land effectively with minimum load on the tractor. The tynes used in this tiller have variable thickness which is matched to the soil conditions of the end-user.
4. The ergonomically designed shovels used in this tiller have a unique composition which ensures high durability & efficient working, resulting in low-maintenance costs for the farmer.
5. The heavy-duty lift provided in the tiller ensures that the farmer can engage the tiller in medium to light duty soils easily.
6. The double nakka provided with the three point linkage provides the ease of attachment & detachment and is also more robust than single nakka.

TECHNICAL SPECIFICATION

DESCRIPTION / MODELS NERTC 9 NERTC 11 NERTC 13 NERTC 15
Frame (mm) 72x72x6 Tubular Frame
Spring (mm) WD 10 & OD 50, 28.5 Coils
Tyne (mm) Profile cut single piece 25 mm
Pairs (mm) 8 (EN-45)
Linkage 3 Point (mm) 6x16 Front, 50x16 Rear
Shovel (mm) 8 (EN-45)
Length (mm) 2010 2467 2924 3381
Width (mm) 559
Height (mm) 533
Mounting Category CAT II
Weight (Kgs. Approx) 210 250 290 335
Tractor Power (H.P) 40 - 50 50 - 55 60 - 65 70 - 75

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
